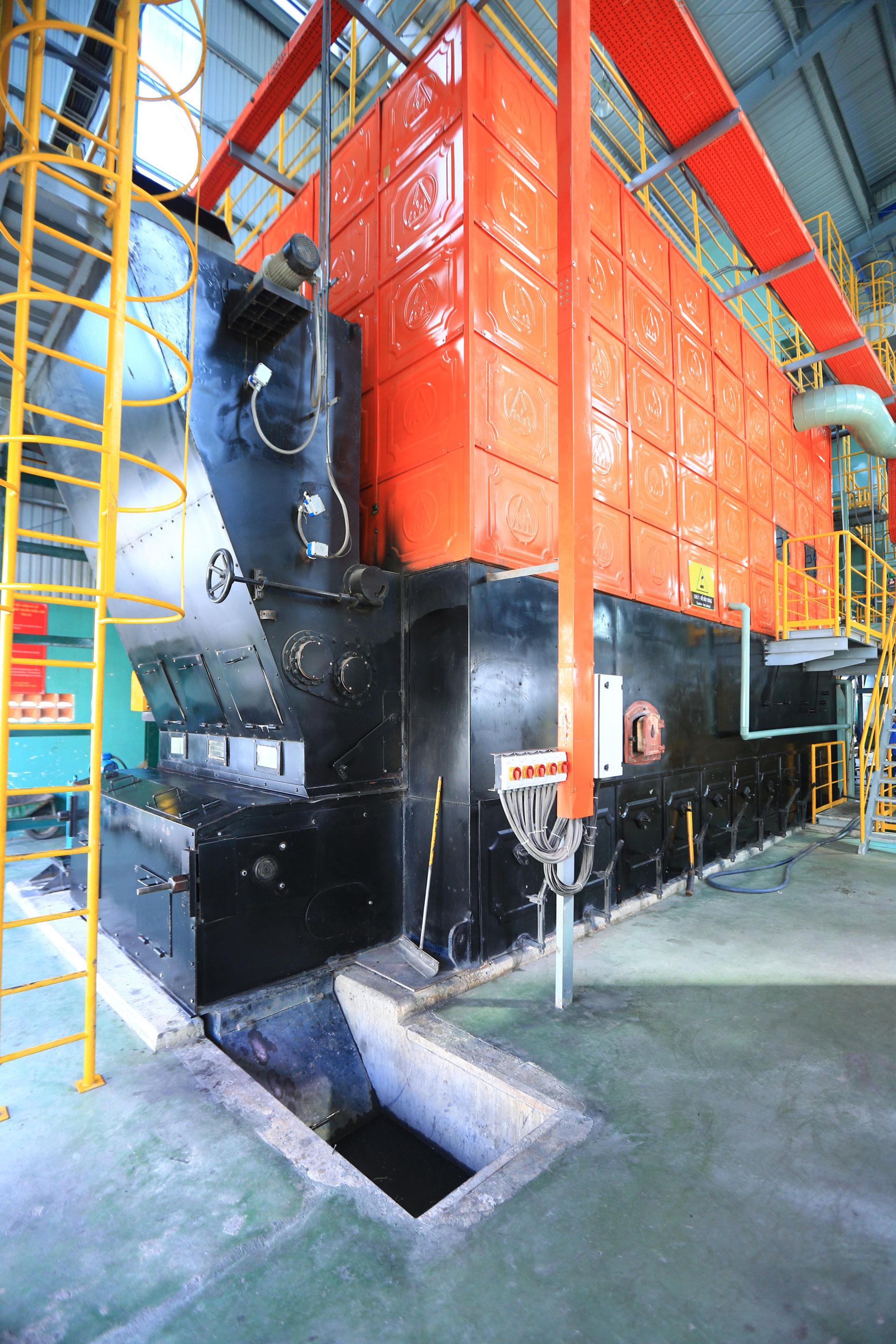

Chain Grate Thermal Oil Boiler

Specification

Calculation & Design            : According to ASME and TCVN

Fabrication                            : According to ASME and TCVN

Thermal Capacity                 : (1,000,000 - 16,000,000) Kcal/h

Working Pressure                 : ( 4-15) bar (g)

Fuel                                       : Indonesia coal & Biomass

Boiler Efficiency                    : 85%

Heat transfer fluid                 : Oil liquid or Oil vapor

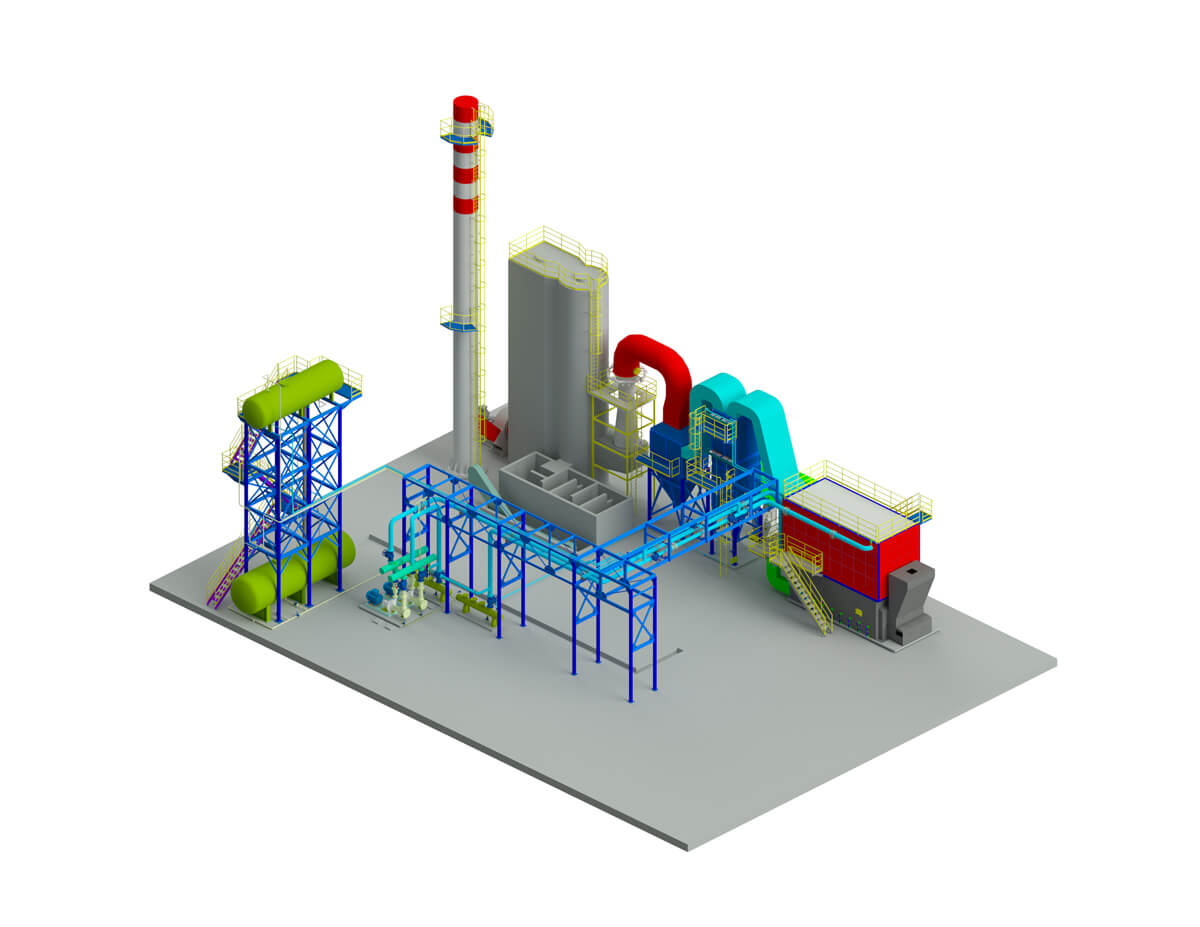

Chain Grate Thermal Oil Boiler Layout

Introduction:

This burning process is similar to the automatic stocker and quite useful for small capacity boilers( below 16,000,000 kCal/h)

This is used to supply heated oil for productoin sites or factories where they need high temperature for their processes.

The oil working temperature range: up to 4000C

The oil working pressure range: up to 15 bar(g)

Fuel feeding system: The chain grate thermal oil boiler system is equipped with multi-fuel feeding system consisting of:Fuel receiving hopper with weight scale, fuel feeding belt conveyors

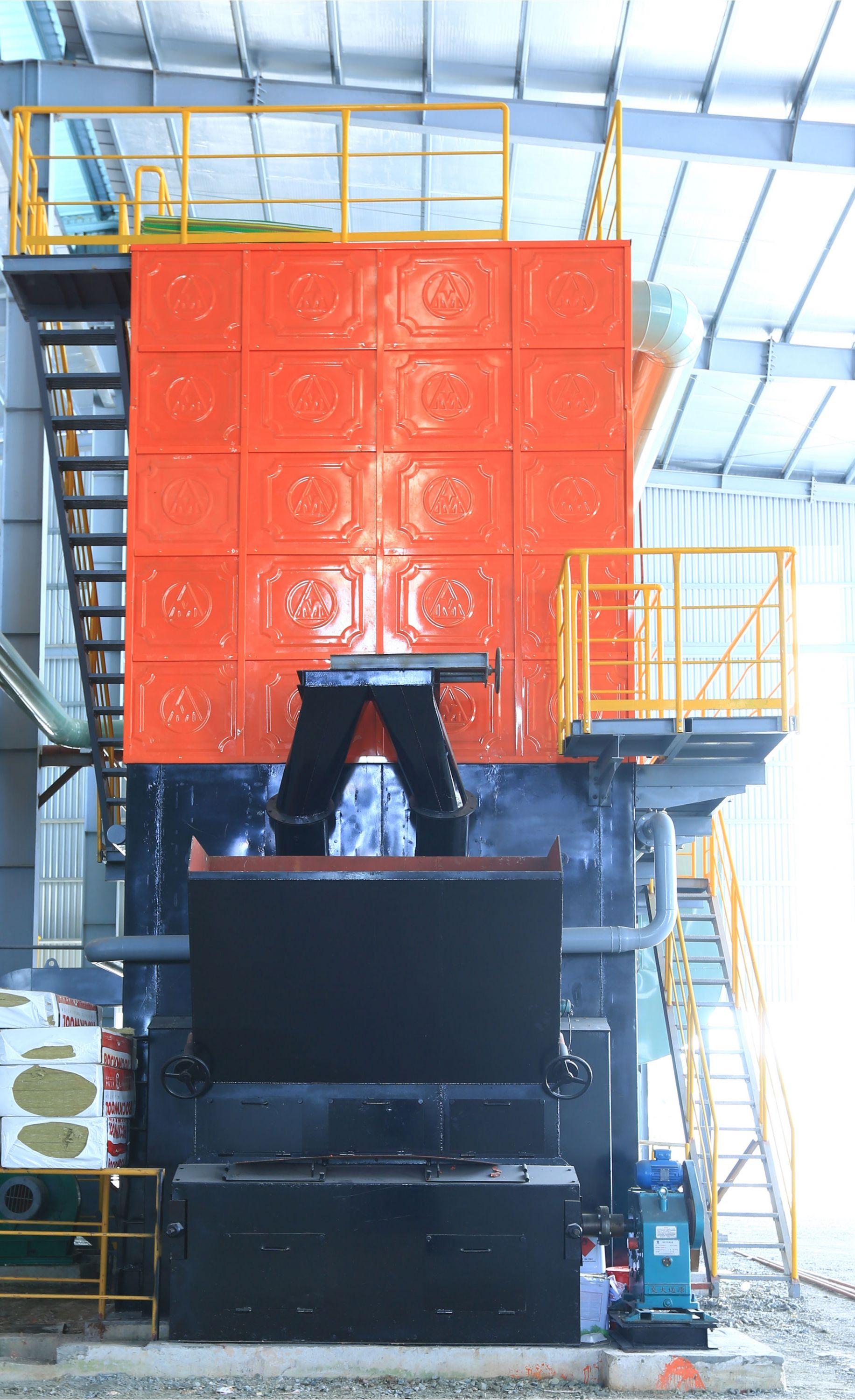

Furnace-boiler body: Perfect Design for fuel burning thoroughly and large heating face such as: Chain-grate, furnace, ID Fan, FD FAN, convection and radiation tube...

Air Pre-heater: Recover the heat from the boiler flue gas which increases the thermal efficiency of the boiler by reducing the useful heat lost in the flue gas

Dust Colector: We have been designed  Dust Collector including: Electrostatic Precipitators (ESP), Bag Filter or Multi-Cyclone with Ventury to meet the prevailing stringent Pollution control norms

pic
